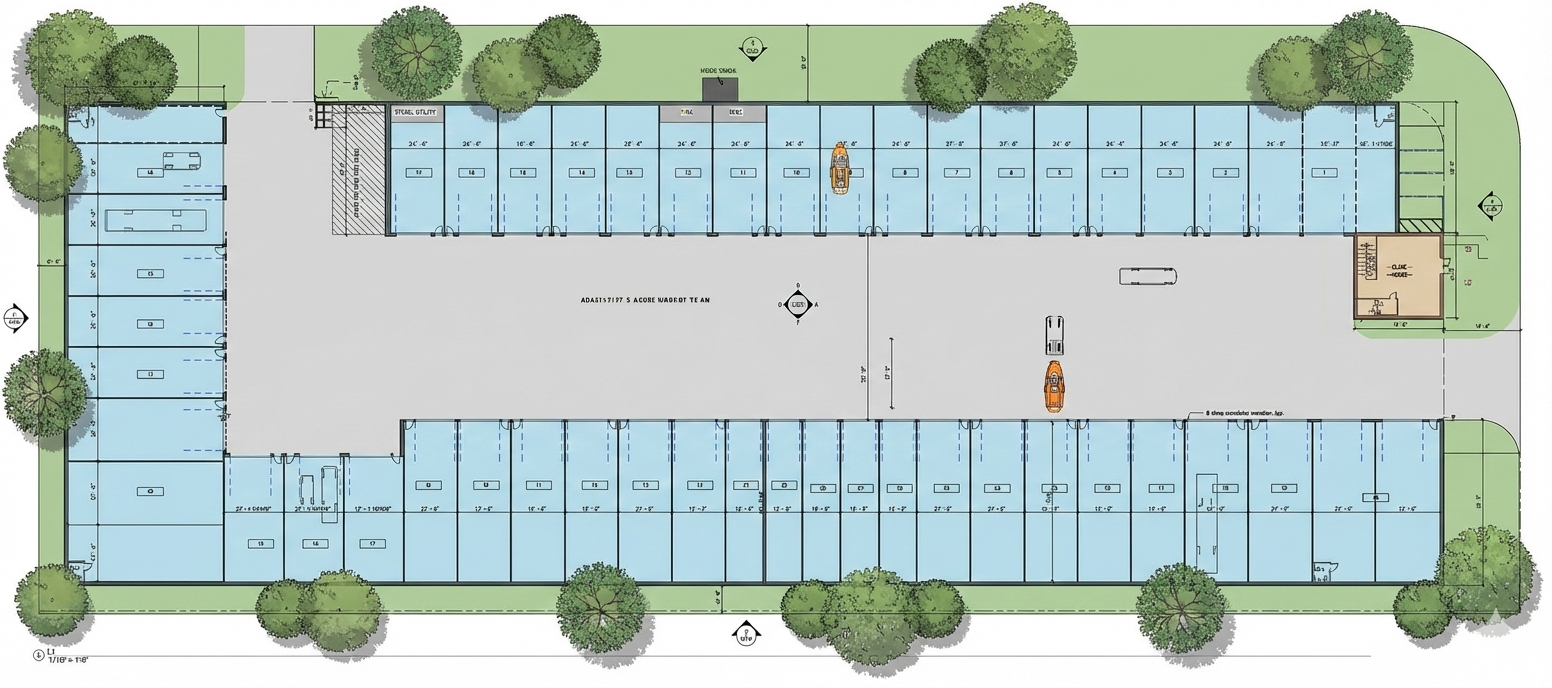

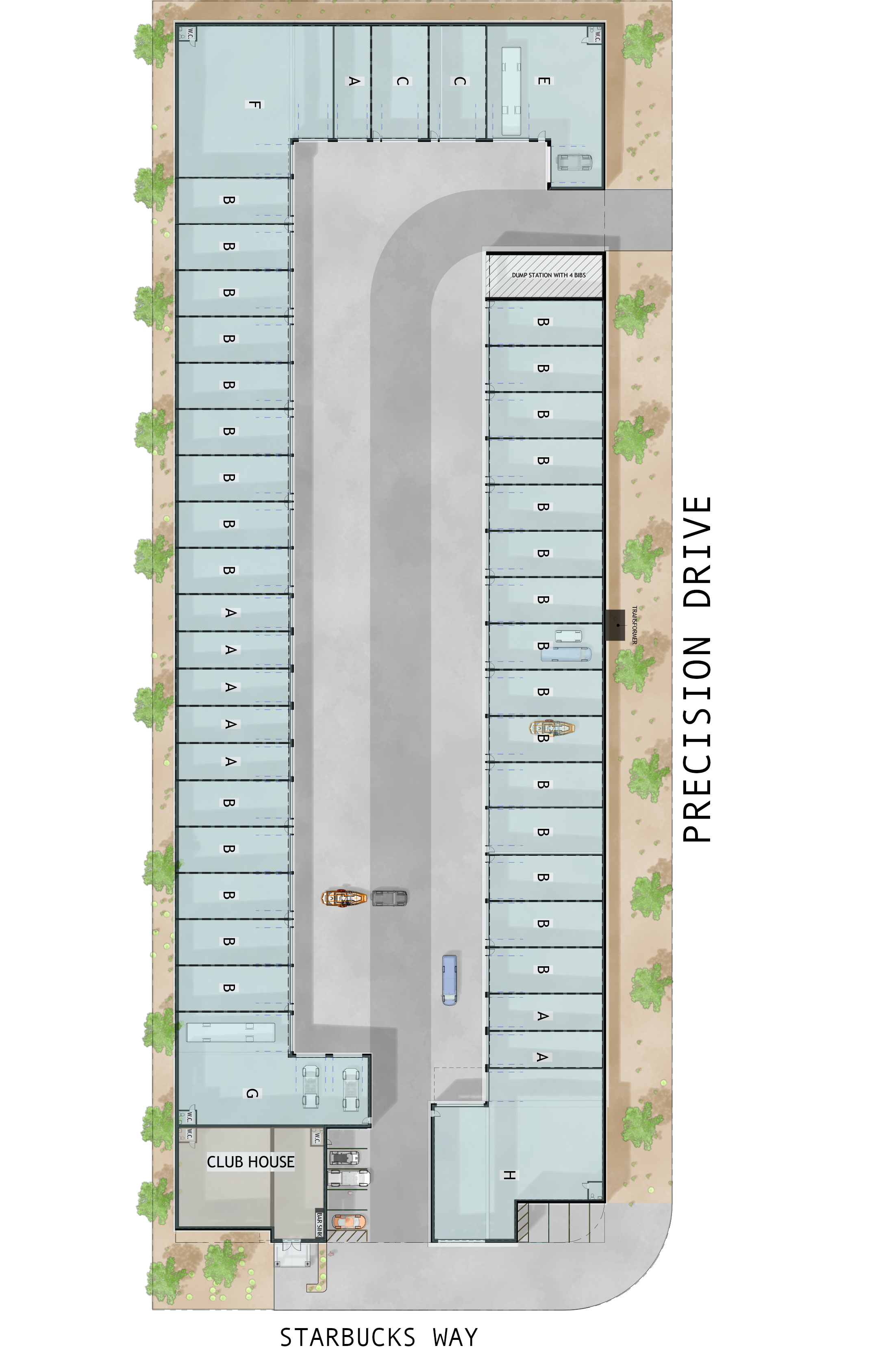

Site Plan Details

This is a draft siteplan and as with all types of construction, there will be changes as we move along.

Here are some quick and dirty measurements.

• Interior Aisle Width 72'
• 16'x 50' 800 Sq Ft
• 16'x 65' 1040 Sq Ft
• 21' x 50' 1050 Sq Ft
• 20'x 61' 1220 Sq Ft
• 23 x 50' 1150 Sq Ft
• 25' x 65' 1,625 Sq Ft
• Garage SW Corner 4,575 Sq Ft
• Garage NW Corner 3,660 Sq Ft
• Garage NE Corner 2,850Sq Ft
• Garage SE Corner 3,250 Sq Ft
• Interior Height 22'
• Entrance Width (Starbucks Way) 26'



Combining Garages


*Since none of the dividing walls are Load Bearing Walls you can combine garages to create massive support free spaces Clear Span
. For example, you could combine 2 - "A" buildings, creating a 30' wide by 50' deep garage. You could also combine 2 - "C" garages, to create a 50' wide by 50' deep garage. The combinations are almost endless.

The aisle widths are very generous at 86', so parking anxiety does not exist here.

Door widths will vary depending on the garage width and location. We are working with an overseas company in developing a garage door that opens the full width and height of the garage, up to 50' wide. More on that later.

               Site Plan Discussion

This document outlines architectural details and elevation specifications for a clubhouse and garage structure.

Building Specifications

The clubhouse features a total height of 62' - 7 1/4" with a two-story design. The garage has a top of door height at 14' - 0" and a roof height of 35' - 6". ​ Various elevations are provided, including north, west, south, and east views, each at a scale of 1/16" = 1'-0".

Structural Elements

The document specifies an 8" deep structural member as a typical feature. Additional facilities include a dump station with four bibs and multiple water closets (W.C.). Utility spaces are designated for electrical storage and trash management.

Measurements and Heights

Key heights include 28' - 3" for the top of the clubhouse wall and 24' - 6" for the top of the garage. Various other heights are noted, including 21' - 0" for several sections and specific measurements for courtyard elevations.
